INSTRUCTIONS AND SPECS

You can find exact dimension in the pictures. And if you would need spec drawing for engineering purpose, please feel free to contact us! Simply click below to get your instructions!

1.0 FREESTANDING

  1. Free Standing 10x10’, 10x13’, & 13x13’ => Freestanding 10x10, 10x13, 13x13
  2. Free Standing 13x19’ => 13x19 Freestanding

Video 1: 10x10', 10x13', 13x13' Freestanding

Video 2: 13x19' Freestanding


1.0 WALL MOUNT

  1. Wall Mount 10x10’, 10x13’, & 13x13’ => Wall Mount 10x10, 10x13, 13x13
  2. Wall Mount 13x19'’ => Wall Mount 13x19 Wall Mount 13x19

Video 1: 10x10', 10x13', 13x13' Wall Mount

Video 2: 13x19' Wall Mount

2.0 FREESTANDING

  1. Freestanding 13x15', 13x19' => Instruction for VP 2.0
  2. Video Instruction for VP2.0 => Villa Pergola 2.0 Instruction - BON Pergola

Manual Screen/Shade

  1. Manual Screen Set Up Paper Instruction=> Manual Screen Set up Paper Instruction
  2. Manual Screen Set Up Video Instruction => Screen Set Up Video
  3. Manual Screen/Shade - Increase tension video => Manual Screen / Shade - Increase tension video.

Motorized Screen/Shade

  1. Motorized Screen/Shade Set Up Paper Instruction (Wiring Required) => Motorized Screen Set up Paper Instruction
  2. Set Up Video (Wiring Required) => Motorized Screen Set Up Video
  3. Motorized Screen/Shade Electrical Motor with (E) at the back of item- Programming video = > Electric Motor (with (E) at item number
  4. Screen get stuck and need Adjustment/Troubleshoot? : Screen adjustment

Premium Sliding Shutter

  1. Sliding Shutter Installation Instruction > LINK

Premium Aluminum Slat Fence

1. Set up instruction for => Premium Aluminum Slat Fence

Rain Sensor

  1. Rain Sensor Set Up => Rain Sensor Instruction
  2. Set Up Video => VIDEO

Heater

  1. Heater instruction = >Heater instruction

BOND Bridge Smart Home

1. Set up instruction video => VIDEO

CAN I DO MINOR CUSTOMIZATION?

YES, BUT BEFORE DOING IT. PLEASE PLAN FOR IT. IF YOU ARE NOT FIRM UPON CUSTOMIZATION, PLEASE DO NOT DO IT. IF YOU HAVE ANY CONCERN, EMAIL OR CALL US. WE ARE ALWAYS HERE TO HELP!!!

Height Adjustment:

Measure the correct height of each post. Use a saw that is meant for aluminum alloy to cut to the exact height. Sanding if necessary. Drill new holes for footing plate connection. Cut new drainage location at the bottom of the post. Place the footing cover if needed. (recommend to put silicone around the connection between footing plate and the post)

(you can remove more louvers easily, but not the width of slats)

Projection/Length Adjustment:

You can size down on the projection/length by cutting the LOUVER BEAM (where the louvers are on). This has to be measured and calculated precisely before doing so. The distance between each louver is 12cm. After you cut the beam, cut the gutter in the exact distance as the beam. Then drill the holes the same as the beam to post connection. Sanding if necessary.
Example: If you are planning to make reduction of 1 feet on the length = 30.48cm. You can go to closest of either 24 or 36cm. So simply have it cut under CM or have CM divide 2.54 to get each inch. (Never round up, but round down by 1/8 inch gap. Round up the cut down number will make insufficient space to fit the last louver)

HOW DO I MAKE MY PERGOLA SIT NEXT TO EACH OTHER FLUSH?

For the top gap, you will need to get some non rust cover like aluminum flushing to cover the gap in between the pergola on the top.

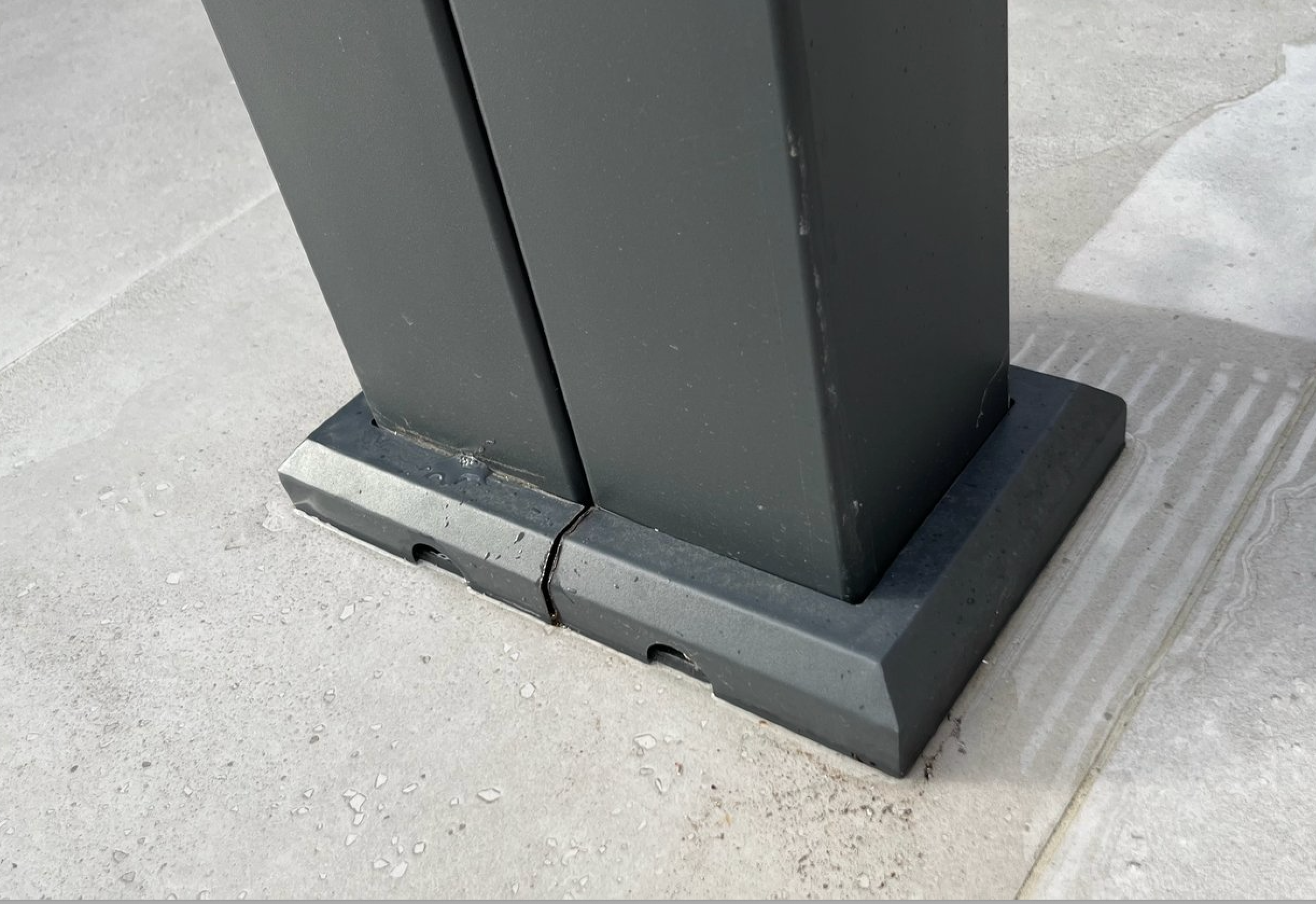

For the post to be flush together, you will need to modify the base plate like below pictures.
